CNC machines · Used

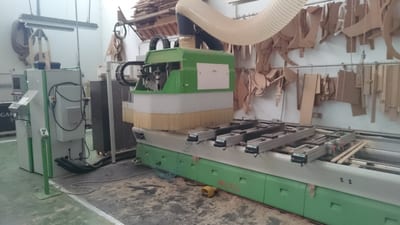

Biesse Rover 30 L2 CNC machining centre
4-axis Biesse Rover 30 L2 CNC machining centre with a 4,500 x 1,500 mm working area.
- Year
- 2000
- Price
- On request
Or email us at [email protected]
Description
Biesse Rover 30 L2 4-axis machining centre:
- 4,500 x 1,500 mm working area
- 8 consoles and 24 vacuum cups
- 7-position revolver tool changer on the head
- 2-position side magazine for large aggregates
- 10 kW electrospindle
- Drilling head for X and Y machining, with saw
- Workpiece lifting bars
- Chip and offcut conveyor mat
- Vacuum pump
Technical specifications
| Brand | Biesse |
|---|---|
| Model | Rover 30 L2 |
| Year of manufacture | 2000 |
| Axes | 4 |
| Working dimension X | 4,432 mm |
| Working dimension Y | 1,540 mm |
| Working dimension Z | 200 mm |
| Main motor power | 8 kW |
| Max. rotation speed | 24,000 rpm |
| Rotational axes | C-axis |
| Tool changing positions | 10 |
| Tool clamping system | ISO30 |
| Vertical drills | 20 |
| Horizontal drills in X | 6 |
| Horizontal drills in Y | 2 |

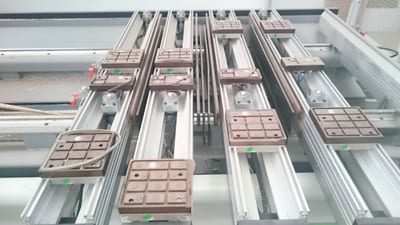

| Machine table | Pod and rail |

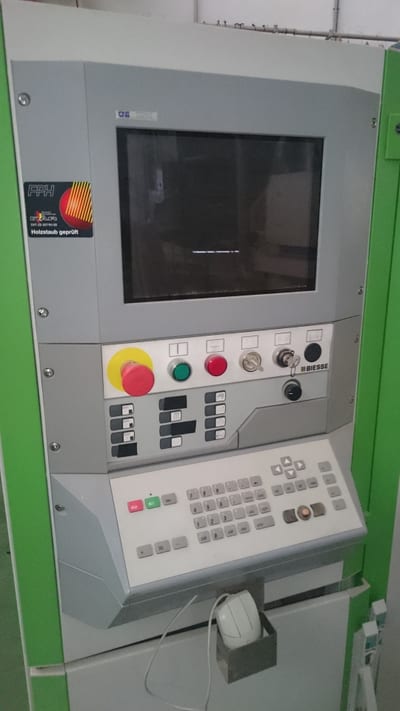

| Machine control | XNC |
| Vacuum pump capacity | 100 m³/h |
| Safety device | Shut-off mat |
| Total connected load | 20 kW |
| Weight | 7,360 kg |
